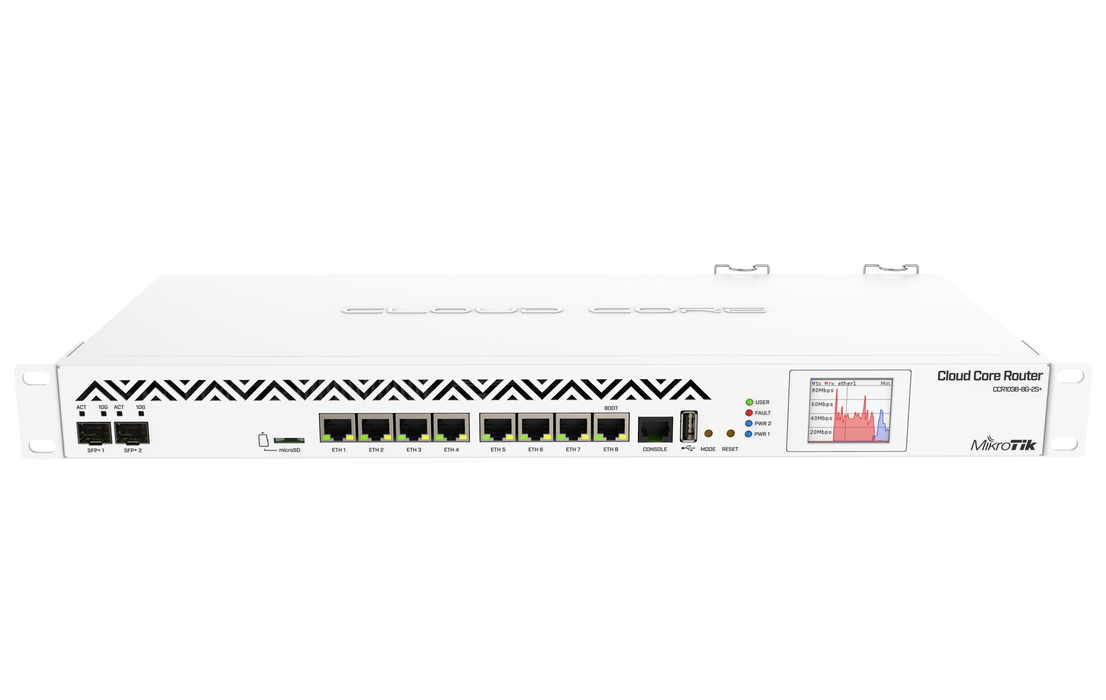

Mikrotik Cloud Core Router 1036-8G-2S+EM with Tilera Tile-Gx36 CPU (36-cores, 1.2GHz per core), 8GB RAM, 2x SFP+ cage, 8x Gigabit LAN, RouterOS L6, 1U rackmount, Dual PSU, LCD panel.

SKU CCR1036-8G-2S+EM
Save 5% Save 5%
Original price $1,328.57
Original price $1,328.57 - Original price $1,328.57
Original price $1,328.57
Current price $1,268.30
$1,268.30 - $1,268.30
Current price $1,268.30

Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and a serial console port.

The new version of CCR1036-8G-2S+EM has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

Supports both SFP (1.25G) and SFP+ (10G) modules

Specifications

Details
Product code CCR1036-8G-2S+EM
Architecture TILE
CPU TLR4-03680
CPU core count 36
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 8 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $1395.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 73 W
Cooling type 2

Ethernet

Details
10/100/1000 Ethernet ports 8

Fiber

Details
SFP DDMI Yes
SFP+ ports 2

Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of M.2 slots 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
