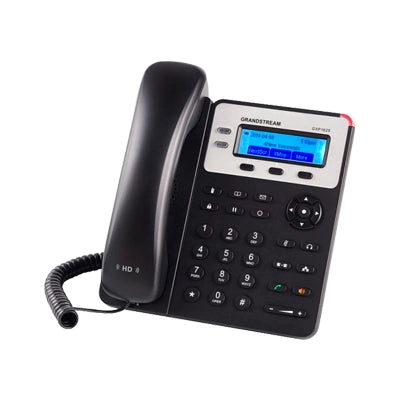

Grandstream 2 Line SMB IP Phone with 3 Programmable Function Keys and 3-way Conference, 5 Vdc

Original price $63.99 - Original price $63.99
Original price $63.99
$72.49
$72.49 - $72.49
Current price $72.49
SKU GXP-1620
Availability:
55 in stock, ready to be shipped

A reliable IP phone for small business users, the GXP1620 delivers a suite of powerful VoIP features in an easy-to-use fashion with a modern design. The GXP1620 offers support for up to 2 lines and features full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity. The GXP1620 does not features built-in PoE. These features allow the GXP1620 to be a high-quality and easy-to-use small business IP phone.



Protocols/Standards:

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LADP, TR-069, 802.1x, TLS, SRTP



Network Interfaces:

Dual switched auto-sensing 10/100 Mbps Ethernet ports



Graphic Display:

132 x 48 backlit graphical LCD display



Feature Keys:

2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND, and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME



Voice Codecs:

Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC



Telephony Features:

Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, shared-call appearance (SCA) / bridged-line-appearance (BLA), Downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over



Headset Jack:

RJ9 headset jack (allowing EHS with Plantronics headsets)



HD Audio:

Yes, HD handset and speakerphone with support for wideband audio



QoS:

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS



Security:

User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control



Multi-language:

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more



Upgrade/Provisioning:

Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR- 069 or AES encrypted XML configuration file



Physical and Electrical Features:

• Base Stand: Yes, 2 angled positions available, wall mountable

• Wall Mountable: Yes

• Dimensions: 8.2 x 7.2 x 3.0" (209 x 184.5 mm x 76.2 mm) (with handset)

• Weight: 1.6 lb ( 0.73 kg)

• Package weight: 2.42 lb (1.1 kg)

• Operating temperature:  32 to 104ºF (0 to 40º C), storage: 14 to 140ºF (-10 to 60ºC)

• Humidity: 10 to 90%, Non-condensing

• Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC



Package Content:

GXP1620 phone, handset with cord, base stand, universal power supply, network cable, Quick installation Guide, brochure, GPL License



Compliance:

FCC: Part 15 (CFR 47) Class BCE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1
